PASTING GUM:
Pasting gum may be defined as the adhesive used for combining paper to paper, Paper to board, or board to board in packaging industries, in corrugating industries this adhesive is used for subsequent production of multiwall boards out of single faced corrugated boards and Flat Kraft liners or duplex or pulp board.

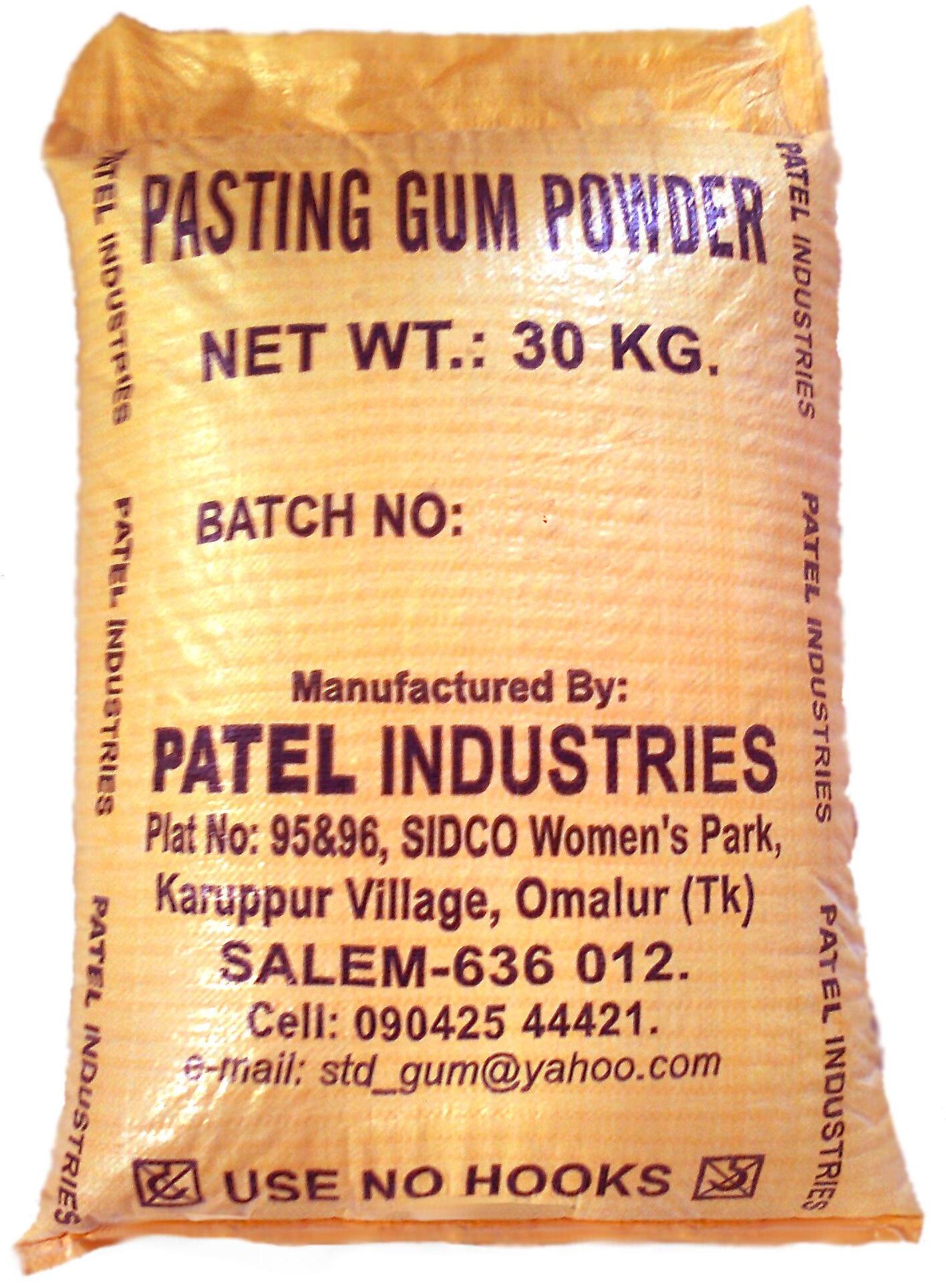

PASTING GUM POWDER :
Our pasting gum powder is purely 100 % Tapioca based. The available ratio of gum powder (kg) to water (litres) is 1: 3, 1:4, 1:5, 1:6 & 1:7.
Most of the Adhesive manufacture use Acids as a catalyst to react the starch and their product But we are using water soluble resins as a catalyst which make us different from others in terms of bonding and drying of sheets.
Uses: It is used in manual pasting machine and semi automatic pasting machine.
Advantages
Gum Preparation method – 200 kg (1:6)
(Note: stirring 30minute will cook the gum and help to produce a good Quality gum)
(Observation: After 30 minutes touch the gum vessel from outside you will
Observe the vessel is warm)
(Note: To set the viscosity between 25 to 35 sec you may need approx + 10ltrs of water
Note: It is must to have a high speed mechanical stirrer with minimum 3hp motor and 1440rpm for preparation of gum
FLUTE TYPE VISCOSITY RANGE (B4 CUP) |
E-FLUTE 20 to 25 seconds |
N-FLUTE 25 to 35 seconds |
B-FLUTE 35 to 45 seconds |
Technical Data 1:4(1kg GP: 4ltr water) 1:5(1kg GP: 5ltr water) |
Grade GP-40 GP-35 |
Base Tapioca Tapioca |
Solid Content 20% + 1% 17% + 1% |
pH 11.5% + 1% 11.5% + 1% |
Viscosity cup 25 to 35 sec in ford B4 cup 25 to 35 sec in ford B4 |
Dryness time of sheet 30 minutes (approx) 40 minutes (approx) |
Colour of liquid Glue Cameron (Dark Brown) Cameron (Dark Brown) |
Technical Data 1:6(1kg GP: 6ltr water) 1:7(1kg GP: 7ltr water) |
Grade GP-30 GP-25 |
Base Tapioca Tapioca |
Solid Content 15% + 1% 12% + 1% |
pH 11.5% + 1% 11.5% + 1% |
Viscosity 25 to 35 sec in ford B4 cup 25 to 35 sec in ford B4 cup |
Dryness time of sheet 50 minutes (approx) 60 minutes (approx) |
Colour of liquid Glue Cameron (Dark Brown) Cameron (Dark Brown) |
